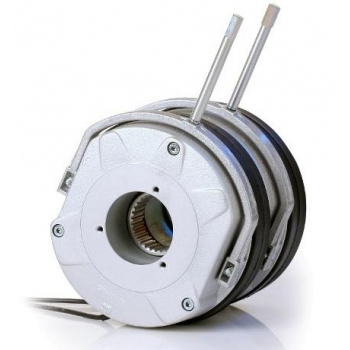

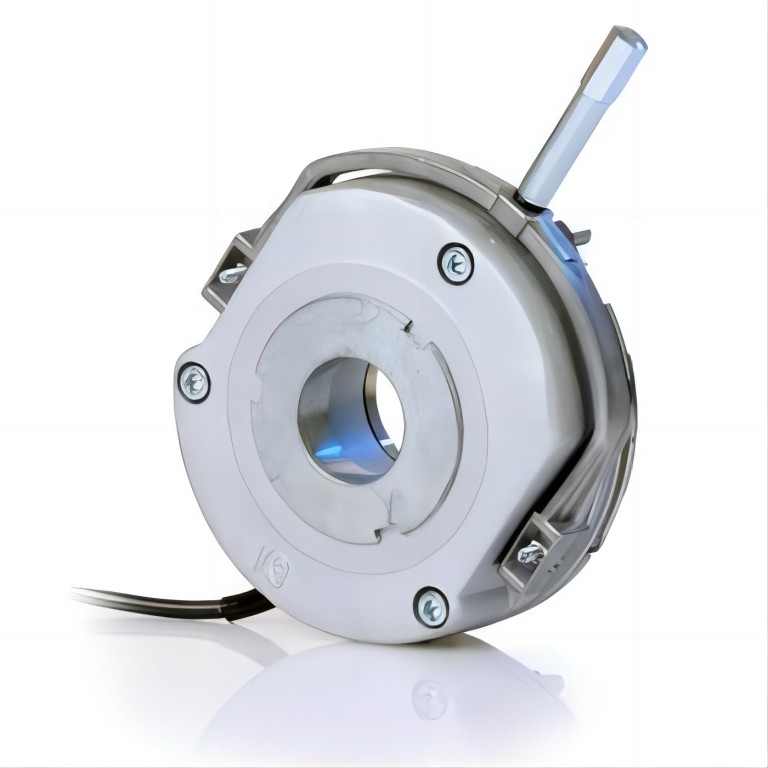

  FDB solid electromagnetic brake




•


• • Application Areas







  Since many years our FDB brake has a name as absolute reliable brake for use in almost every application.

  As standard this brake is available in 10 different sizes for static or dynamic braking with re- settable air gap design.

  Due to several variations and options this brake series is preferred by motor manufactures for universal use.

  C - Version for adjustable braking torque

  N - Version with fixed braking torque

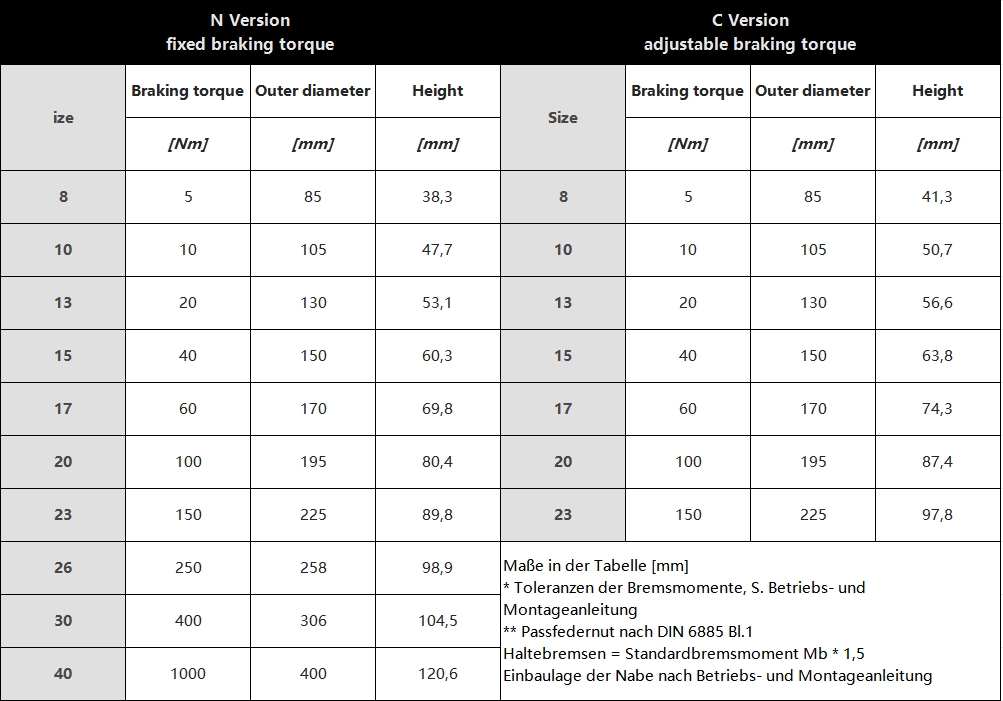

SPECIFICATIONS

OPTIONS

• N version = fixed braking torque

• C version = adjustable braking torque (up to size 23)

• Tapped holes for tachometer or encoder mounting

• noise-reduced

• manual hand release, optionally lockable

• Microswitch for function and wear monitoring

• Sensor for function monitoring

• Friction plate or mounting flange

• Dust protection

• Temperature sensor
