Sumitomo Helical Buddybox®

Helical Buddybox®

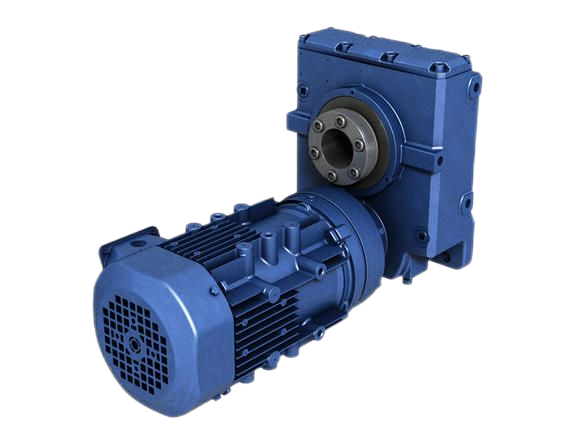

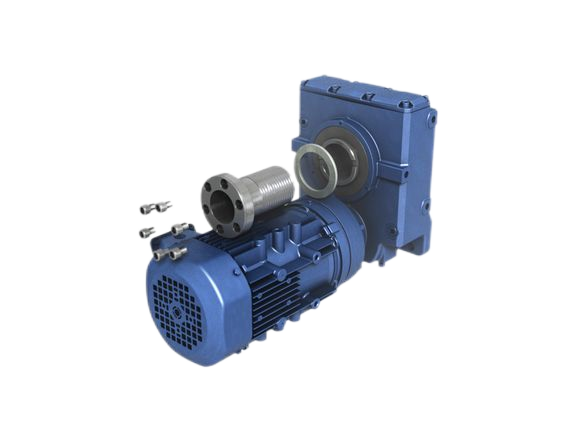

Helical gearbox with Cyclo reducer input. Features keyless, Steel Taper-Grip® bushing for easy installation.

Overview

Offset parallel, helical gearbox in a rugged integral, shaft-mounted design.

Integrated Cyclo® technology

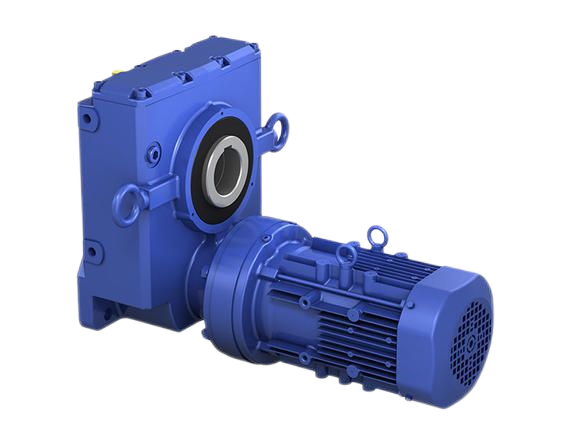

Keyless Taper-Grip® Bushing or Keyed Hollow Bore

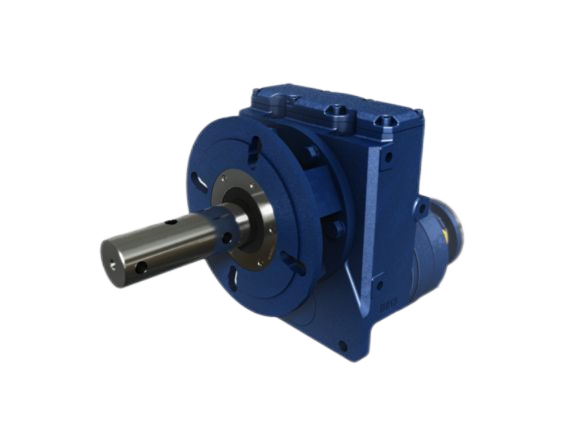

Ideal for Screw-Conveyor applications

Technical Info

• Input                         Integral Gearmotor, X-Adapter

• Output                     Taper-Grip® Bushing, Keyed Hollow Bore, Screw Conveyor

• Ratios                       11:1 up to 4,365:1

• Torque                     Up to 8,256 Nm

• Power Range           0.1 to 30 kW

• Mounting                 Hollow Shaft, Flange

• Options                    Integral Motor

• Motor Standards      CE, IEC, JIS, UL, CSA, NEMA

Cyclo® HBB

Sumitomo’s Helical Buddybox® (Cyclo® HBB) speed reducers and gearmotors provide innovative shaft-mounted drive solutions for demanding applications. The Cyclo® HBB combines the quiet, efficient and reliable performance of the Cyclo® input with the rugged helical-gear output. The modular design provides a compact, efficient product and the most flexible range of output speed and torque combinations available.
